Brief Description Of Automatic Coationg Machine

1. The Auto Coating Machine can process a variety of different materials, such as peanuts,sunflower seeds,green peas,other nuts and extruder snack.It is suitable for continuous processing and production of materials.



2. Automatic coating machine is composed of peanut hopper,flour tank,flour applicator,coating pan,syrup pump and support stand are of stainless steel 304.Control system is PLC & touch screen.



3. Under the control of PLC, the system adds the powder, peanut and syrup into the coating pan regularly and quantitatively.The peanut and flour are driven by the high-speed coating pan, and the syrup is evenly sprinkled into coating pan. Because the syrup has viscosity, it mixes with peanut and mixed flour, making the peanut surface a layer of powder.At the same time, the mixture will naturally deposit on the surface of the coating pan, which is cleaned by the scraper at the setting time to avoid the accumulation.



4. Advantage of Auto Coating Machine

I. Labour Coat Saving

*Automatic,require initial set-up only

*Save 1-2peason effort to achieve equivalent load using conventional batch coating process.

*Centralized touch screen control to manage end product formulation.

*Saved formulation easily reusable.

II. Excellent End Product

*Consistent end product shape,size and quality,as process is automated.

III.Flexible End Product

*Suitable for coating on all kinds of peas and seeds.Can be half or full coated.

*May add flavouring during coating,or apply seasoning after coating.

Ⅳ. Easy Cleaning

*Coating pan can be easily lifted to clean.

*Peristaltic pump syrup tube easy to remove and clean,Pump does not contact syrup.



5. Automatic coating machine can be matched with a variety of machines, forming different production lines.The front part can be matched with blending machine, screw conveyor, Z elevator.

The latter part can be connected to the fryer or roaster, and the seasoning system to form a complete production line.



I. The process of Fried Coated Peanuts with Continuous Fryer:

① Re-filling of mixture flour to the screw conveyor.

② Re-filling of syrup to the syrup tank.

③ Re-filling of peanuts to the Z elevator.

④ Mixture flour,syrup and peanuts are transported to the Auto Coating Machine.

⑤ The Auto Coating Machine coats the peanuts with syrup and flour mixture.

⑥ Fines are removed using the sifting drum.

⑦ A vibrating feed will feed coated peanuts from the hopper into the frying pan.

The continuous frying system will fry the coated peanuts.The system includes a frying pan,heat exchanger, burner,online oil filter and oil storage tank.

⑨ After coated peanuts exist from the frying pan,excess surface oil will be blow off as they are on the de-oil conveyor.

⑩ The Fired Coated Peanuts are sent for seasoning.

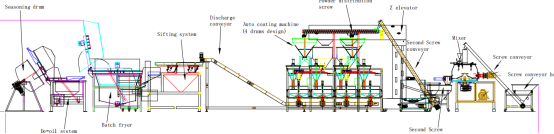

II. The process of Fried Coated Peanuts with Batch Fryer.



① Re-filling of flour to the screw conveyor.

② Transport flour to the Flour Blender for flour mixing

③ Re-filling of syrup to the syrup tank.

④ Re-filling of peanuts to the Z elevator.

⑤ Mixture flour,syrup and peanuts are transported to the Auto Coating Machine.

⑥ The Auto Coating Machine coats the peanuts with syrup and flour mixture.

⑦ Fines are removed using the sifting system.

⑧ Weighing system on hopper to ensure batch load for batch frying.

⑨ Batch fryer System includes infeed conveyor, weighing hopper, infeed bucket, fryer, de-oil system.

⑩ The Fired Coated Peanuts are sent for seasoning.



III. The process of Roasted Coated Peanuts with Rotary Tunnel Roaster





① Re-filling of flour to the screw conveyor.

② Transport flour to the Flour Blender for flour mixing

③ Re-filling of syrup to the syrup tank.

④ Re-filling of peanuts to the Z elevator.

⑤ Mixture flour,syrup and peanuts are transported to the Auto Coating Machine.

⑥ The Auto Coating Machine coats the peanuts with syrup and flour mixture.

⑦ Fines are removed using the sifting drum.

⑧ Coated peanuts are roasted in Rotary Tunnel Roaster.

⑨ The Roasted Coated Peanuts are sent for seasoning.
